Definition (glossary card): tls-crypt-v2 is OpenVPN’s client-specific control-channel encryption mode. Each client gets a unique tls-crypt key (Kc) plus a wrapped copy of that key (WKc) encrypted under a shared server key. On connect, the client sends WKc inside a P_CONTROL_HARD_RESET_CLIENT_V3 packet; the server unwraps Kc and both peers then encrypt control-channel packets with the client-specific key instead of one group pre-shared key.

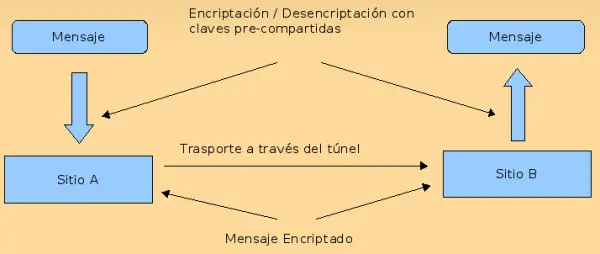

Diagram comparing pre-shared key VPN authentication concepts
Source: Wikimedia Commons — Lbutrico pre-shared key

When an OpenVPN settings screen or provider FAQ mentions “tls-crypt-v2,” it is naming a control-channel protection mechanism, not a data-channel cipher and not a standalone VPN protocol. Understanding the difference matters for large fleets and hosted VPN providers: classic --tls-auth and --tls-crypt share one group key across every client and server. If any peer is compromised, that shared key stops providing meaningful DoS and TLS-stack protection for everyone else. tls-crypt-v2 keeps the server-side wrapping key shared while giving each client its own Kc.

Where the design comes from

OpenVPN documents the feature in doc/tls-crypt-v2.txt and in the project’s generated API docs for control channel encryption (tls-crypt, tls-crypt-v2). The same client-specific scheme appears in the draft OpenVPN Wire Protocol under “Client-specific encryption keys,” which explicitly notes that existing implementations call the feature tls-crypt-v2.

The rationale is operational as much as cryptographic. Shared group keys expire faster as client counts grow, and a leaked laptop can force a mass re-key. By encrypting each client’s Kc under a server key and shipping WKc with the client, operators can revoke or rotate individual clients without redistributing a single community-wide static key. Servers can still accept legacy tls-crypt or tls-auth clients during migration because the V3 hard-reset opcode signals the new mode.

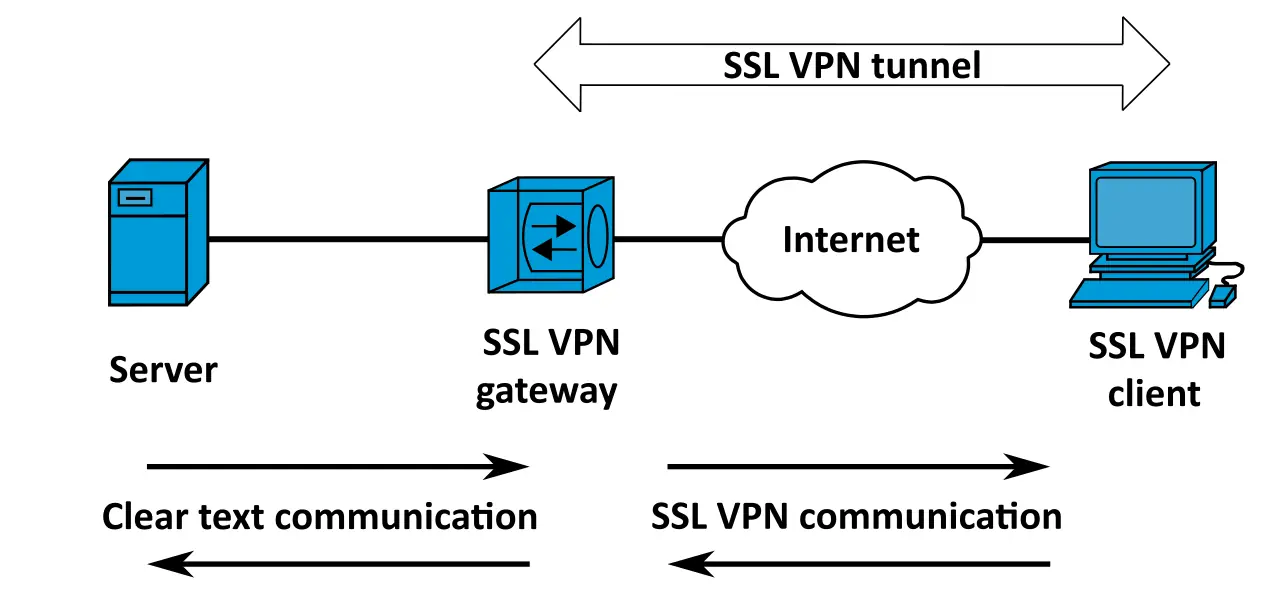

SSL VPN topology showing client, network, and server roles
Source: Wikimedia Commons — SSL VPN Topology

At a high level the flow is an encrypted cookie:

  1. Operators create a tls-crypt-v2 server key used only to wrap and unwrap client keys.
  2. For each client they generate a fresh Kc, wrap it as WKc under the server key, and deliver Kc || WKc to the client (often as a PEM block headed BEGIN OpenVPN tls-crypt-v2 client key).
  3. The client’s first control packet uses opcode P_CONTROL_HARD_RESET_CLIENT_V3 and carries WKc.
  4. The server decrypts WKc, loads Kc, optionally runs a tls-crypt-v2-verify script against metadata, and thereafter both sides use Kc for tls-crypt-style control-channel protection.

Optional metadata inside the wrapped blob can carry early policy checks (for example client identity hints) so a server can abort abusive handshakes before spending expensive TLS work. That early abort is one reason the feature is marketed for DoS resistance on large multi-tenant systems. Large VPN providers especially benefit because compromised customer endpoints no longer automatically expose a single shared tls-crypt group key that every other customer depends on for control-channel filtering.

What tls-crypt-v2 protects — and what it does not

tls-crypt-v2 encrypts and authenticates control-channel packets: the TLS handshake traffic that negotiates session keys and options. It does not replace the data-channel cipher (AES-GCM, ChaCha20-Poly1305, and so on), does not choose exit IPs, and does not implement a no-logs policy. Think of it as armor around OpenVPN’s control plane so that unauthenticated UDP noise and stolen group keys are less useful against the TLS stack.

OpenVPN 2.7.8’s release notes (summarized by Linux Compatible on 7 October 2026) also show why robustness around tls-crypt-v2 still matters: one 2.7.8 fix stopped clients from blindly trusting a peer request to resend a wrapped client key when no key material was available. Italy’s CRA policy treated that class of “malicious server can disrupt the client” issue as robustness degradation rather than a CVE-worthy confidentiality break, but operators still want the patch on every client that speaks tls-crypt-v2.

How it differs from tls-auth and tls-crypt

  • tls-auth: HMAC-only integrity on control packets with a shared static key; does not encrypt the control channel.
  • tls-crypt: Encrypts and authenticates control packets with one shared group key.
  • tls-crypt-v2: Same control-channel AEAD-style protection as tls-crypt, but with per-client Kc plus server-wrapped WKc cookies.

All three are about the control channel. Confusing them with WireGuard’s Noise handshake or with IKEv2 is a common glossary error. WireGuard does not use tls-crypt-v2; OpenVPN consumers who enable WireGuard elsewhere are on a different stack entirely. Likewise, enabling tls-crypt-v2 does not magically upgrade outdated data-channel ciphers or fix DNS leaks outside the tunnel.

Practical checklist

  1. If you run a multi-client OpenVPN server or a VPN provider fleet, prefer tls-crypt-v2 over a single shared tls-crypt key so one lost client does not poison the whole group key.
  2. Keep the server wrapping key offline-backed and rotatable; plan how WKc files are reissued when that server key changes.
  3. Confirm clients actually speak V3 hard-reset (modern OpenVPN builds) before disabling legacy tls-auth/tls-crypt on the server.
  4. Track OpenVPN 2.7.8+ for tls-crypt-v2 robustness fixes even when a change lacks a CVE ID.
  5. Remember: strong control-channel wrapping cannot fix a reused user password, a phishing portal, or a DNS leak outside the tunnel.

In short: tls-crypt-v2 is OpenVPN’s answer to “how do large deployments keep control-channel encryption without one catastrophic shared static key?” Learn the cookie model, keep data-channel and policy questions separate, and treat per-client key hygiene as part of normal VPN operations rather than an exotic enterprise-only option.
